MOTION SENSOR 360 PINHOLE WHITE - VOLT FREE (DRY CONTACT)
€189,00
In stock
SHIPPING | TAXES | ORDERING
SKU M360-PH-W-VOLF
The Faradite Motion Sensor 360 Pinhole - Volt Free sets a new frontier for sensor technology. This rear-mounted, ultra-discreet sensor allows custom installers to deliver precise motion based automation from a visible front that is just 15mm in diameter.
This sensor has been developed for bespoke automation requirements and can only be installed in locations where the installer can access the rear of the installation surface such as wall paneling, joinery, staircases, furniture, and wall plates. The max supported panel thickness is 5mm.

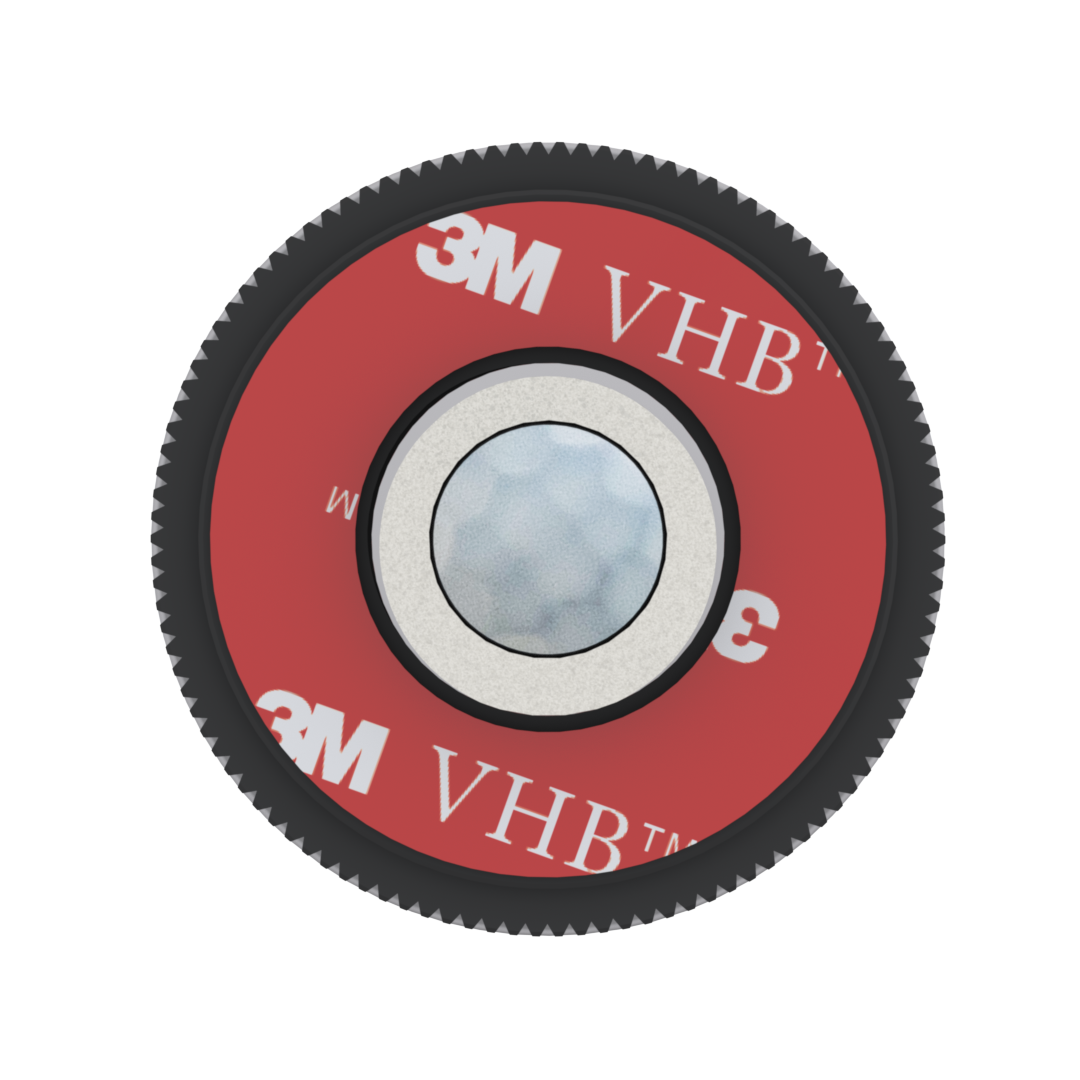

The solid aluminium pinhole sensor unit features a threaded barrel with 2 disc nuts. These two nuts adjust depending on the thickness of the material to ensure a flush installation every time. The top depth setting disc has ultra-strong 3M adhesive that is affixed to the back of the mounting face, with the second threaded bolt used as a locking nut tighten against the depth setting nut to secure the pinhole sensor in place.

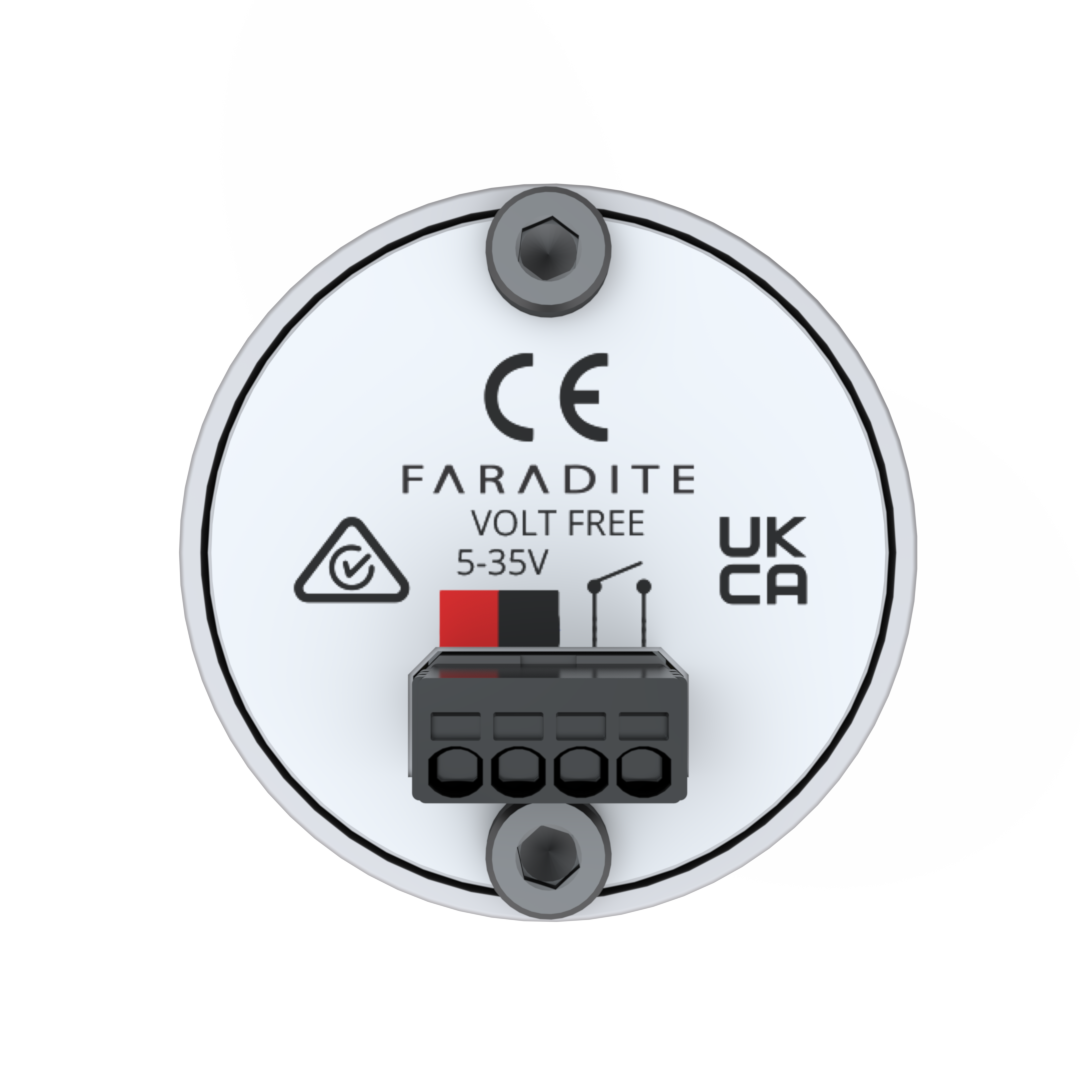

Inside the sturdy unit, you will find the same flawlessly reliability that our installers now expect from Faradite, as well as our ever-popular, removable push-fit connector blocks. 5V - 35V DC power and a volt free (dry contact) output which makes it as universally compatible as the rest of our Motion Sensor 360 Volt Free range.
DOWNLOAD PDF DATASHEET
This sensor has been developed for bespoke automation requirements and can only be installed in locations where the installer can access the rear of the installation surface such as wall paneling, joinery, staircases, furniture, and wall plates. The max supported panel thickness is 5mm.
The solid aluminium pinhole sensor unit features a threaded barrel with 2 disc nuts. These two nuts adjust depending on the thickness of the material to ensure a flush installation every time. The top depth setting disc has ultra-strong 3M adhesive that is affixed to the back of the mounting face, with the second threaded bolt used as a locking nut tighten against the depth setting nut to secure the pinhole sensor in place.
Inside the sturdy unit, you will find the same flawlessly reliability that our installers now expect from Faradite, as well as our ever-popular, removable push-fit connector blocks. 5V - 35V DC power and a volt free (dry contact) output which makes it as universally compatible as the rest of our Motion Sensor 360 Volt Free range.
