MOTION SENSOR 360 WHITE (0-10V LUX)

€81,25
In stock
SKU M360-W-0-10V

Notify me when back in stock

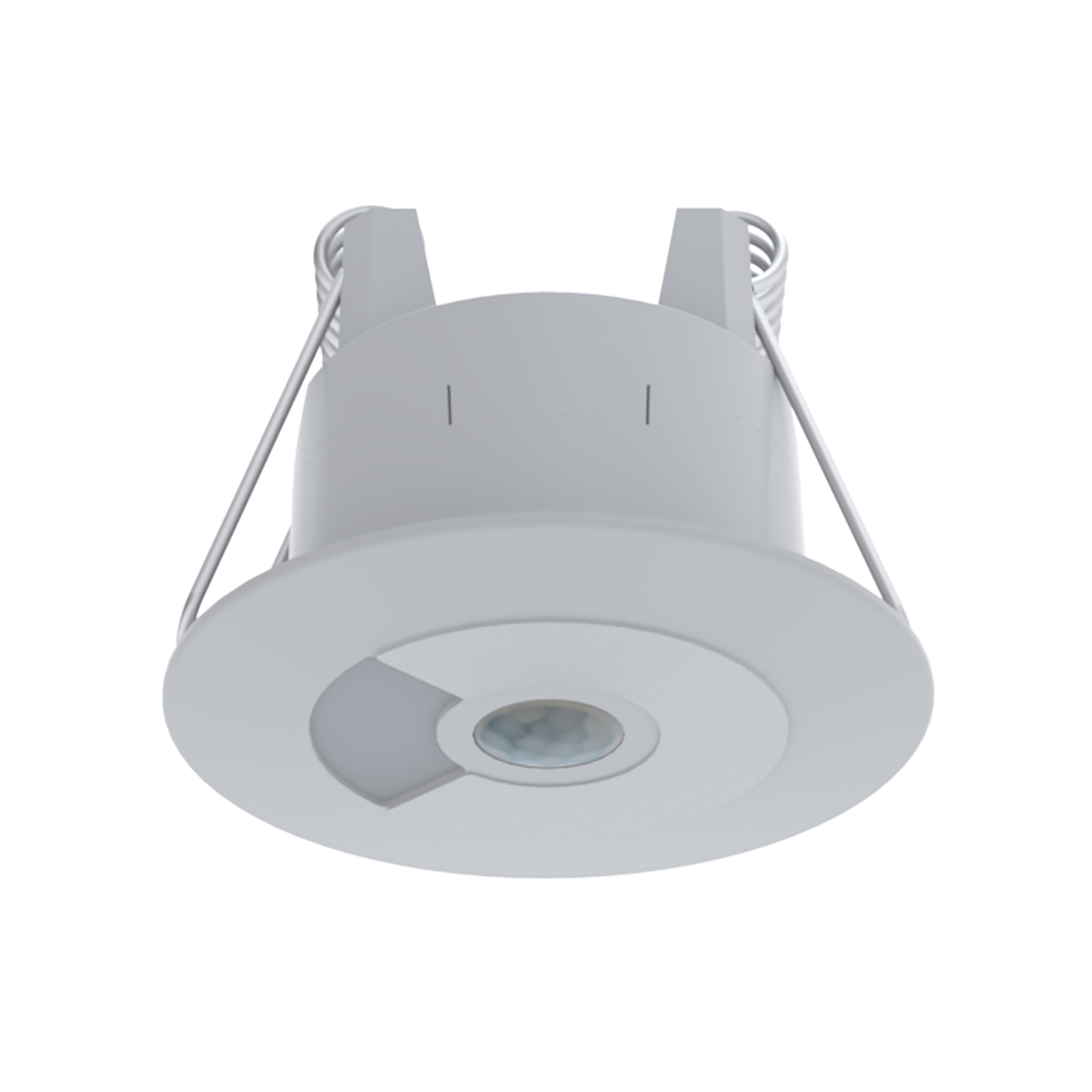

The Faradite Motion Sensor 360 White 0-10V LUX is a low profile, 12-24V, passive infrared, ceiling mounted motion sensor with an integrated 0-10V (0-1000 Lux) light sensor. It is designed for use with building automation systems, such as Loxone and Crestron.

DOWNLOAD PDF DATASHEET

Discreet motion sensing for the ultimate smart home

SIMPLY CONNECTS TO MULTIPLE SYSTEMS

SIMPLY CONNECTS TO MULTIPLE SYSTEMS

Loxone logo

The sensor can be connected directly to a Loxone system utilising the Digital and Analogue inputs.

crestron logo

Connect the Motion Sensor 360 - 0-10V to Crestron for discreet motion and brightness sensing.

BENEFITS


100% SILENT RELAY


No annoying 'Click'. The Motion Sensor 360 range uses a completely silent, solid state relay.



LOW PROFILE


A subtle stylish sensor that protrudes less than 3.5mm from the ceiling.



VERY SMALL


So small it can be mounted in a business card. The visible front is just 49mm across.



DC POWER


Low voltage power, ideal for a broad range of control systems.

Our motion sensors use the latest digital sensors

SMALL AND EFFECTIVE

Here at Faradite, design is everything, but, not at the compromise of functionality. During the design of the Motion Sensor 360 range we wanted to keep the profile to a minimum. The result, a high spec digital sensor that only protrudes 3.5mm from the ceiling.

The Motion Sensor 360 range introduces a robust, discrete and stylish option for your smart home.

PUSH-FIT TECHNOLOGY
Faradite 0-10v motion sensor terminals with cat5 cable core

PUSH-FIT INSTALLATION

Our connectors make for a speedy installation, simply strip the solid core wire and push into the connector

Faradite 0-10v motion sensor terminals with sim card remover tool

REMOVE CABLE

Simply insert the supplied tool or a small screwdriver to release the wire

Faradite 0-10 motion sensor showing removable terminal block

REMOVABLE CONNECTORS

To remove the sensor, simply pull the connector out of the motion sensor. It couldn't be simpler

DIMENSIONS
Faradite Motion Sensor 360 just 35mm diameter cut out
Faradite Motion Sensor 360 measuring 49mm diameter
Faradite Motion Sensor 360 depth dimensions 42mm
TECHNICAL SPECIFICATION



INSTALLATION


To install the Faradite sensor, cut a 35mm hole using a suitable hole saw (40mm for fire rated). Fold the spring clips upwards and push through the hole.



CONNECTIONS


12V - 24V DC @ 24V (3mA)

Digital Output (Motion)

0-10V Analog Output (Brightness)



CONNECTOR


Push fit screwless connector AWG 20- 24 suitable for CAT5 / CAT6 / CAT7.



RANGE / DETECTION AREA


Specified Range 5M / When mounted at a height of 3M, the sensor covers an ~8M diameter floor area. When mounted at 2.5M, it covers a floor area of 5.6M by 6.6M.

CABLE TYPES
Faradite motion sensor 360 terminals with Cat5/cat6 cables in terminals

CAT 5/6

Ideal for CAT 5/6, simply strip the solid core wire and push into the connector

Faradite motion sensor 360 terminals with Cat7 cables in terminals

CAT 7

Ideal for CAT 7, simply strip the solid core wire and push into the connector

Faradite motion sensor 360 terminals with stranded cables in terminals

STRANDED CABLE

Ideal for stranded cable (e.g. Belden Cable), simply insert the supplied sim card remover tool before pushing the wire into the connector
